Winora

Project Highlights

  • Located 325 km north of Red Lake, Ontario
  • Includes 17 patented mineral claims (surface and mineral rights)
  • All-season roads and power lines are under construction and will pass near Lingman Lake on the way to Red Sucker Lake, Manitoba
  • In May 2021, a 100% interest in the Winora property was purchased for 4M shares with a 2% NSR

Lingman Lake Proximity & Characteristics

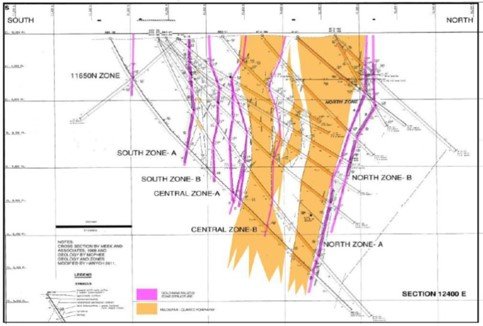

  • The high-grade Lingman Lake orogenic gold mineralization is hosted in multiple quartz veins located on the footwalls and hanging walls of a series of east-west trending quartz feldspar porphyry dykes / intrusions and remains open to the east toward the Winora property and at depth.

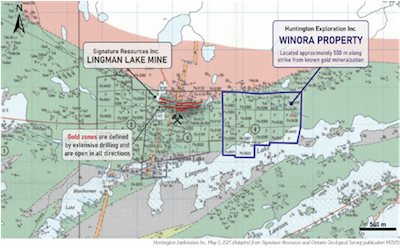

  • The Winora property is approximately 500 m from the eastern edge of defined gold mineralization of the Lingman Lake gold deposit in Lingman Lake, Ontario
  • The Winora property boundary has been re-established with a land survey and Signature Resources Ltd. has released information suggesting that a compilation of historic drill holes is approximately 100 m from the common boundary

  • Drilling is targeting the extension of the high-grade gold bearing quartz veins in both the hanging-wall and footwall of a series of east-west trending feldspar porphyry dikes discovered on the Signature side of the claim boundary

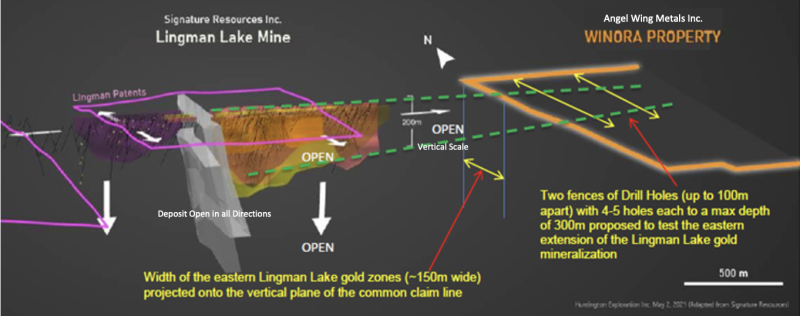

  • Current 1,800m diamond drill program to include a fence of drill holes along the western claim boundary adjacent to the Lingman Lake gold bearing vein trend (Signature Resources Ltd.)
  • Signature drill tested Lingman Lake property to 280m with data released suggests, min widths of 150m, mineralization remains open in all directions and the interpretation of an extension onto the Winora Property
  • Based on results of drill program, ground geophysics consisting of Magnetics and Induced Polarization (“IP”) to be completed prior to Phase 2
